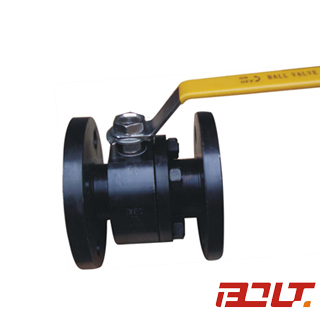

2片式浮动球阀

Features:

Bolted cover or welded cover,two-piece Body,floating ball or fixed Ball

Full or Reduced bore,Blowout Proof Stem

Fire safe and Anti static

Dual seat with injection and drain & outlet

Valve seat material:PTFE､RPTFE､NYLON､DEVLON､Derlin､PEEK､PPL etc

Application criteria:

Design and manufacture: ANSI B16.34,API 608,API 6D,BS5351

Face to face dimensions: ANSI B16.10,API 6D

Flanged connection: ANSI B16.5

Butt welded: ANSI B16.25

Fire-safe: API 607~API 6FA

Test and inspection: API 598,API6D

Pressure rating

CLASS 150

CLASS 300

CLASS 600

CLASS 900

CLASS 1500

CLASS 2500

Size range

1 / 4 " to 3"

Optional Materials

Carbon Steel: A105, LF2

Stainless Steel: F304, F304L, F316, F316L

Duplex: F51, F55

Alloy: F1, F5, F5A, F9, F11, F22
